The main technical parameters
Main bus maximum operating current 5000A
4700A
Main busbar short (1S) withstand current 100KA (RMS)
Main busbar short time peak current 250KA (max)
Vertical bus operating current 1000A
Vertical busbar short time peak current 90KA (Max)
  Features:
1. The basic structure of the cabinet 25 modulus C-sections are assembled, strong structure general performance, flexible assembly, to meet a variety of structural forms and degrees of protection requirements.
2. The extensive use of high-strength plastic components with sub-type multi-functional isolation plate, greatly improving the safety performance protection.
3. Compact design, with more than 200 assembly can be composed of cabinet structure and drawer units of different options, a smaller space to accommodate more functional unit.
4. Degree of protection according to IEC529 or DIN40050 IP00 to IP54.

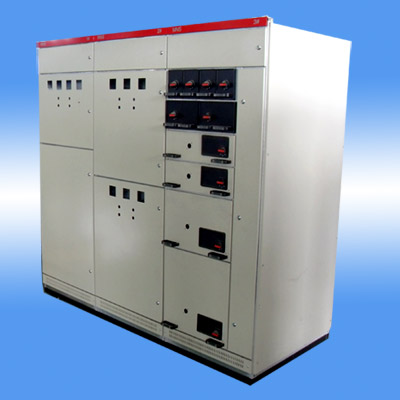

MNS Series Low-voltage withdrawable switchgear for power distribution can be applied to a variety of needs. Widely used in power plants, nuclear power plants, marine oil platforms and other industrial and mining enterprises distribution systems.
